Назначение, организационная структура и вооружение авиационного полка, страница 3

Экипаж, чел.                                                                           2

Длина самолета, м                                                                24,5

Вооружение:                                        23-мм пушка ГШ-6-23, УР «воздух-воздух»,

                                                                             УР «воздух-земля»,

                                                                 бомбы (корректируемые, кассетные)

Высота самолета, м                                                               6,2

Масса, кг                                                                               39700

Тяга двигателя, кгс                                                           2 х 11500

Практический потолок, км                                                   17,1

Дальность полета, км                                                          2850

Максимальная скорость, км/ч                                            1700


Размах крыла, м                                                                                                                        14,4

Максимальная скорость, км/ч                                                              970

Длина самолета, м                                                                                                                 15,3

Экипаж, чел.                                                                                             1

Высота самолета, м                                                                                                              4,8

Вооружение:                                                                     30-мм пушка ГШ-30-2,

                                                                             УР «воздух-воздух» и «воздух-земля»,

                                                                                                                 НУР, бомбы

Масса, кг                                                                                                                                           17600

Тяга двигателя, кгс                                                                              2 х 4500

Дальность полета, км                                                                            1250

Практический потолок, км                                                                                     7

Размах крыла, м                                                                            14,7

Максимальная скорость, км/ч                                                     2500

Длина самолета, м                                                                         21,9

Экипаж, чел.                                                                                    1

Высота самолета, м                                                                        5,9

Вооружение:                                                                  30-мм пушка ГШ-30-1,

                                                                                          10 УР «воздух-воздух»,

                                                                                                        НУР, бомбы

Масса, кг                                                                                22 000 - 30 000

Тяга двигателя, кгс                                                                   2 х 13600

Дальность полета, км                                                                   3900

Практический потолок, км                                                         18,5

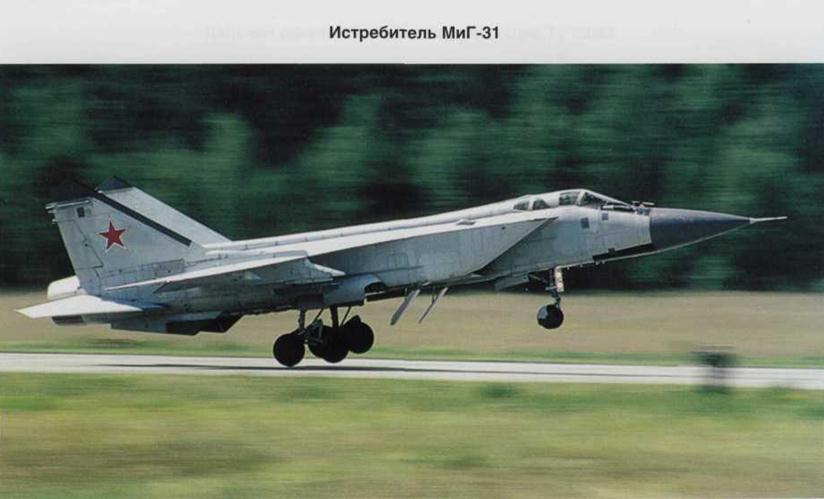

Размах крыла, м                                                                        13,5

Максимальная скорость, км/ч                                                3000

Длина самолета, м                                                                    22,7

Экипаж, чел.                                                                              2

Высота самолета, м                                                                   6,2

Вооружение:                                                               23-мм пушка ГШ-23-6,

                                                                                         6 УР «воздух-воздух»

Масса, кг                                                                           41 000 - 46 000

Тяга двигателя, кгс                                                                2x15500

Дальность полета, км                                                               2500

Практический потолок, км                                                       20

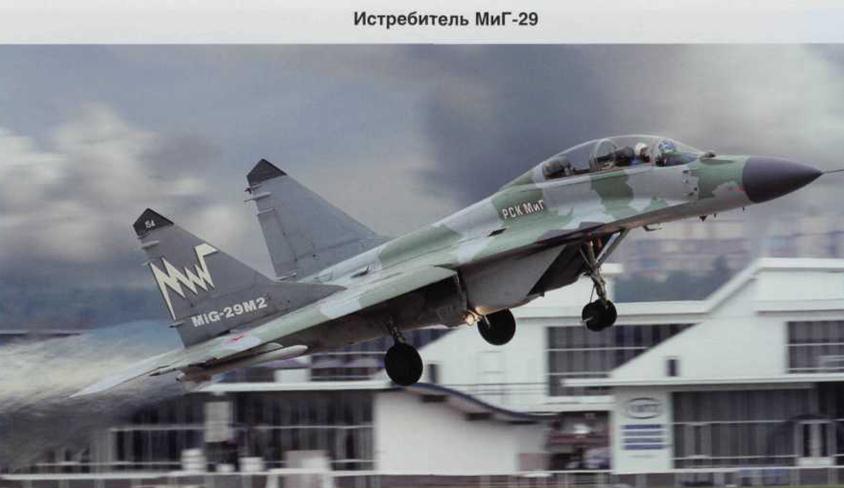

Размах крыла, м                                                                          11,3

Максимальная скорость, км/ч                                                   2450

Длина самолета, м                                                                      17,3

Экипаж, чел.                                                                                  1

Высота самолета, м                                                                      4,7

Вооружение:                                                                30-мм пушка ГШ-30-1,

                                                                                            УР «воздух-воздух»,

                                                                                                        НУР, бомбы

Масса, кг                                                                            15 200-18 500
